CONSTRUCTION OF ALTITUDES OF A TRIANGLE

In this section, you will learn how to construct altitudes of a triangle.

Key Concept - Altitude of a Triangle

In a triangle, an altitude is the line segment drawn from a vertex of the triangle perpendicular to its opposite side.

Constructing  Altitudes of a Triangle - Steps

To construct a altitude of a triangle, we must need the following instruments.

1. Ruler

2. Compass

The steps for the construction of altitude of a triangle.

Step 1 :

Draw the triangle ABC as given in the figure given below.

Step 2 :

With C as center and any convenient radius draw arcs to cut the side AB at two points P and Q.

Step 3 :

With P and Q as centers and more than half the distance between these points as radius draw two arcs to intersect each other at E.

Step 4 :

Join C and E to get the altitude of the triangle ABC through the vertex A.

In the above figure, CD is the altitude of the triangle ABC.

This construction clearly shows how to draw altitude of a triangle using compass and ruler.

As we have drawn altitude of the triangle ABC through vertex A, we can draw two more altitudes of the same triangle ABC through the other two vertices.

Therefore, three altitude can be drawn in a triangle.

The important application of altitudes of a triangles is to get orthocenter.

Orthocenter of a Triangle

Key concept    The point of concurrency of the altitudes of a triangle is called the orthocenter of the triangle and is usually denoted by H.

Orthocenter

Construction of Orthocenter of a Triangle - Example

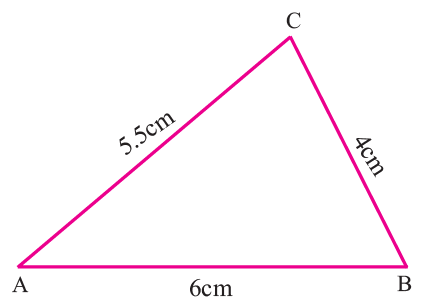

Construct triangle ABC whose sides are AB = 6 cm, BC = 4 cm and AC = 5.5 cm and locate its orthocenter.

Step 1 :

Draw the triangle ABC with the given measurements.

Step 2 :

Construct altitudes from any two vertices (A and C) to their opposite sides (BC and AB respectively).

The point of intersection of the altitudes H is the orthocenter of the given triangle ABC.
