CONSTRUCTION OF FREQUENCY POLYGON

Frequency Polygon is another method of representing frequency distribution graphically.

Draw a histogram for the given continuous data.

Mark the middle points of the tops of adjacent rectangles. If we join these middle points successively by line segment, we get a polygon. This polygon is called the frequency polygon.

It is customary to bring the ends of the polygon down to base level by assuming a lower class of a frequency and highest class of a frequency.

Frequency Polygon can be constructed in two ways:

(i) Using histogram

(ii) Without using histogram.

Example 1 :

Draw a frequency polygon imposed on the histogram for the following distribution.

Solution :

Take the class-intervals along the X-axis and frequencies along the Y-axis with appropriate scale as shown in the figure given below.

Draw a histogram for the given data.

Now mark the mid points of the upper sides of the consecutive rectangles.

We also mark the midpoints of the assumed class intervals 0-10 and 90-100.

The mid points are joined with the help of a ruler.

The ends of the polygon are joined with the mid points of 0-10 and 90-100. Now, we get the frequency polygon.

Example 2 :

Draw a frequency polygon of the following data using histogram.

Solution :

Mark the class intervals along the X-axis and the frequencies along the Y-axis with appropriate scale shown in the figure given below.

Draw a histogram for the given data. Now, mark the mid points of the upper sides of the consecutive rectangles.

Also we take the imagined class interval (-10) - 0 and 60 - 70.

The mid points are joined with the help of a ruler. The ends of the polygon are joined with the mid points of the imagined class intervals (-10)-0 and 60 - 70.

Now we get the frequency polygon.

Note :

Sometimes imagined class intervals do not exist.

For example, in case of marks obtained by the students in a test, we cannot go below zero and beyond maximum marks on the two sides.

In such cases, the extreme line segments are only partly drawn and are brought down vertically so that they meet at the mid points of the vertical left and right sides of first and last rectangles respectively.

Using this note, we will draw a frequency polygon for the following example:

Example 3 :

Draw a frequency polygon of the following data using histogram.

Solution :

Mark the class intervals along the X-axis and the number of students along the Y-axis.

Draw a histogram for the given data. Now mark the mid points of the upper sides of the consecutive rectangles. The mid points are joined with the help of a ruler.

Note that, the first and last edges of the frequency polygon meet at the mid point of the vertical edges of the first and last rectangles.

Example 4 :

Draw a frequency polygon for the following data without using histogram.

Solution :

Mark the class intervals along the X-axis and the frequency along the Y-axis.

We take the imagined classes 0-10 at the beginning and 90-100 at the end, each with frequency zero.

We have tabulated which is given below.

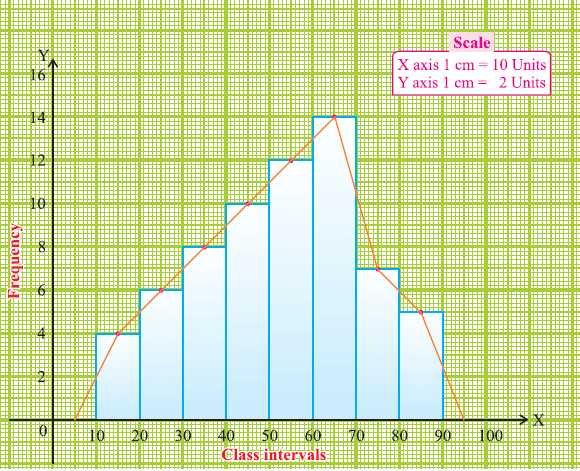

Using the adjacent table, plot the points A (5, 0), B (15, 4), C (25, 6), D (35, 8), E (45, 10), F (55, 12), G (65, 14), H (75, 7), I (85, 5) and J (95, 0).

We draw the line segments AB, BC, CD, DE, EF, FG, GH, HI, IJ to obtain the required frequency polygon ABCDEFGHIJ, which is given below.
